M9176-AU Project
CZ400 Multi-Profile Purlin Line
A project-specific CZ400 line optimized for consistent performance and clean profile geometry.
Project Overview
- Machine: CZ400
- Project Type: Custom Purlin Line
- Line Length: 44m (144′)
- Total Power: up to 147 hp
- Delivery Country: Australia
What Made This Project Different?
Advanced dual-axis dynamic punching in both X and Y, enabling complex hole patterns without slowing the line
Power capacity scaled up to 147 hp for continuous heavy-duty operation
Line layout engineered for high-volume, uninterrupted production
Custom automation and punching configuration beyond standard setups
Custom Engineering & Non-Standard Configurations
"Smart Features for Smarter Production"
At SFS International, we design every machine with one goal in mind: to maximize your production efficiency without compromising quality or flexibility. From smart automation to powerful hydraulic systems, our rollforming lines are built to keep your operation ahead of the curve.
Engineered Fascia Purlin Production
Standard purlins don’t meet façade precision requirements.
Within the M9176 CZ400 configuration, we engineered a dedicated Fascia Purlin solution tailored for building envelope applications. Controlled geometry, clean edge quality, and consistent dimensional accuracy ensure seamless alignment with exterior cladding systems — directly off the rollforming line.
Architectural detailing, produced at structural scale.

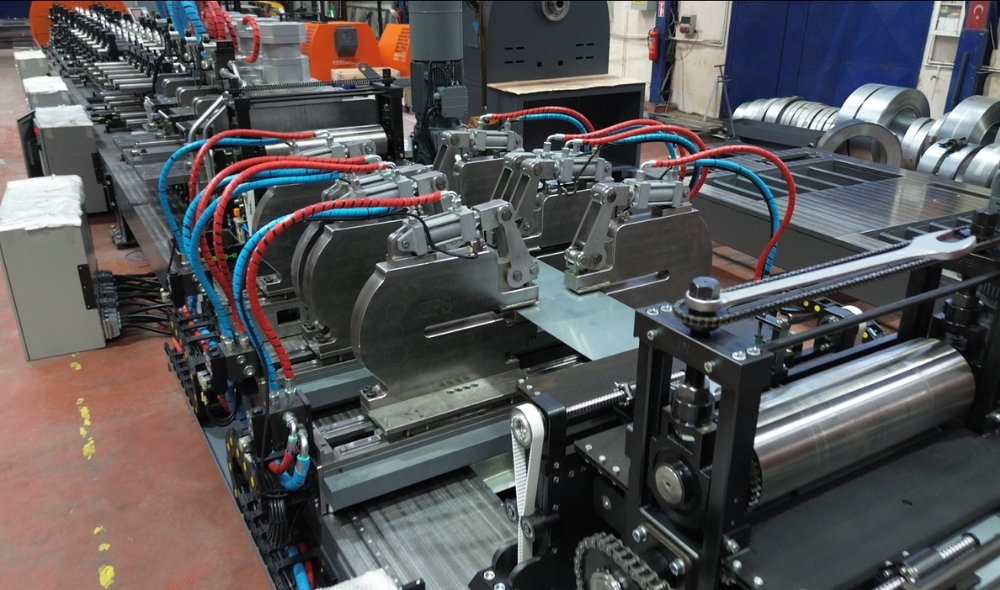

Dual-Axis Dynamic Punching System
This project features a dual-axis dynamic punching system operating in both X and Y directions, enabling complex hole patterns at full production speed.
Unlike static setups, the system punches on the fly, maintaining accuracy without stopping the line.
The result is higher flexibility in profile design, tighter tolerances, and faster overall production without compromising precision.
In This Project
U Profile
C Profile
C Double-Lip Profile
Z Lip Profile
Fascia-Purlin
| Model Name | CZ400 |
|---|---|
| Profile Section | C, C+, U, Z, Fascia |
| Material Gauge | 1.20 to 3.20mm (18 Ga to 10 Ga) |
| Web Range | 100mm to 406mm (4" to 16") |
| Flange Range | 50mm to 130mm (2" to 5") |
| Lip Range | 15mm to 30mm (0.6" to 1.2") |

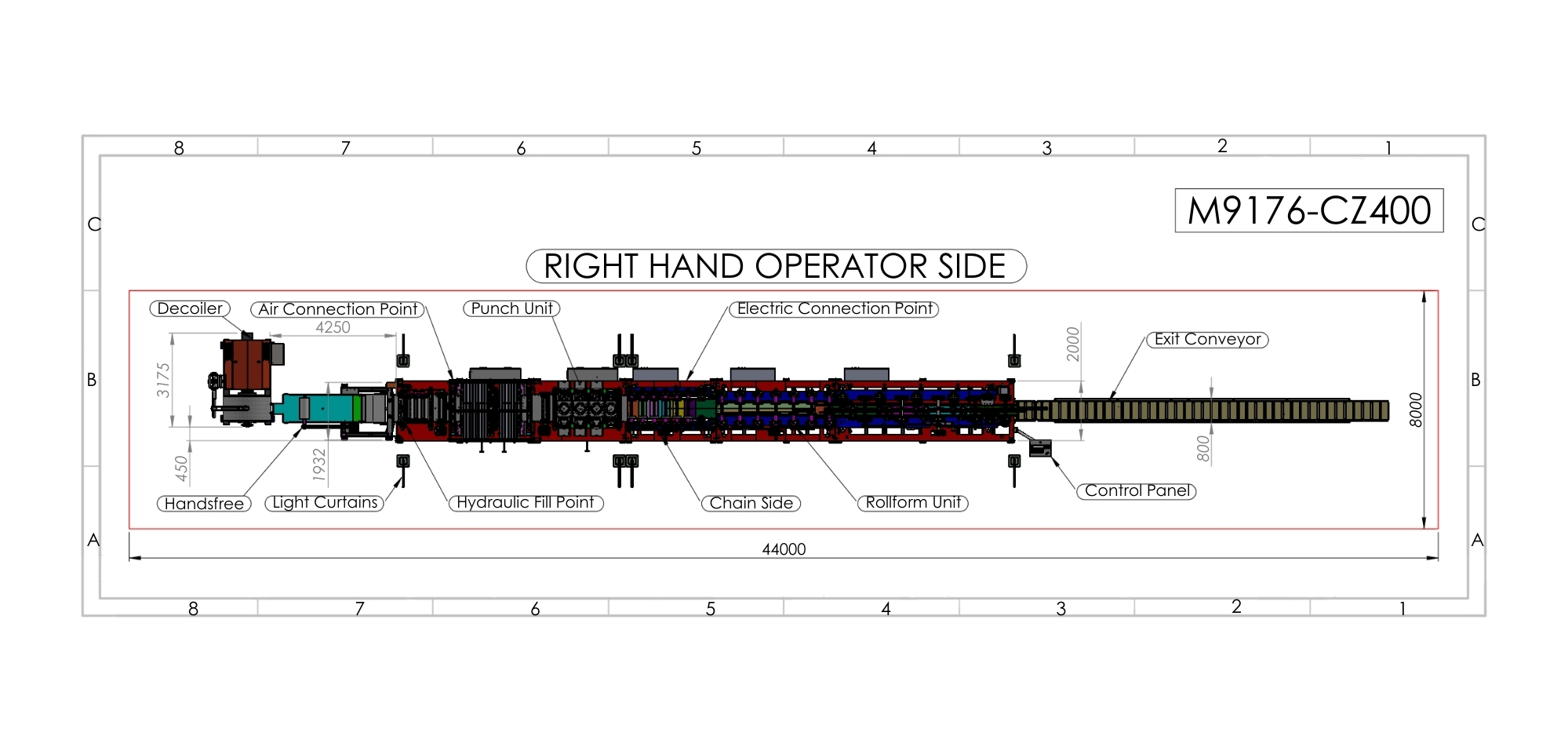

| Dimensions L X W X H | 44m X 8m X 2.9m (144.4' X 26.2' X 9.5') |
| Machine Length | 44m (144.4') |
| Weight | 47,383kg (104,462lb) |
| Drive Motor Power | 110kW (147hp) |
| Hydraulic Power | 15kW (20hp) |
| Hydraulic Tank | 120L (31.7gal) |
| Line Speed | 35m/min (114.8') |
| Production Speed | up to 1,200m/hr* (3,937') |

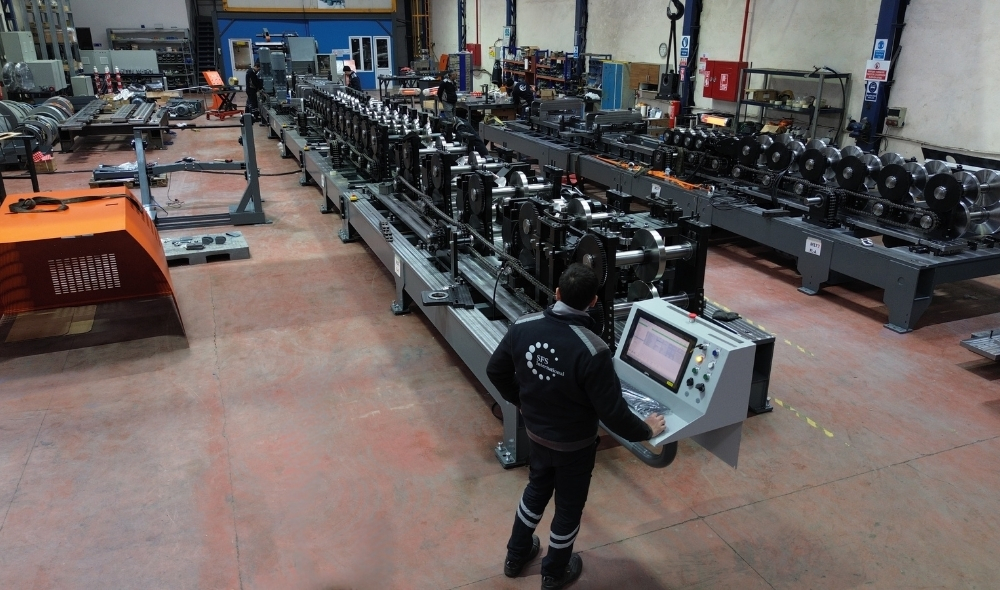

| Touch Screen | Panel PC (Windows 10) |
| Machine Control | FrameWare Machine Control |
| Component Marking | Matthews Single Head Inkjet Printer |

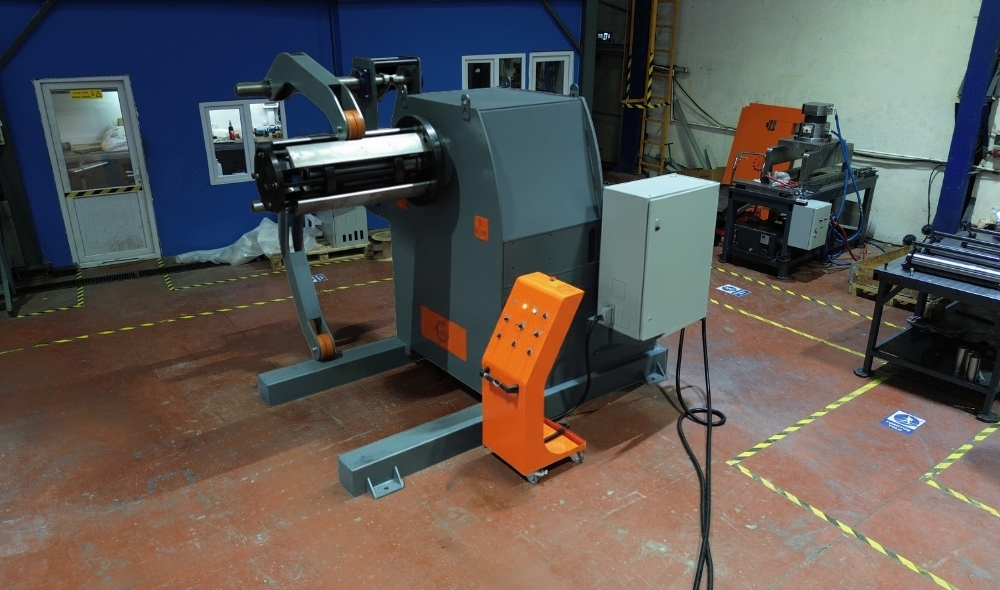

| Decoiler Drive | 22kW (29.5hp) |
| Decoiler Capacity | 10,000kg (22,000lb) |
| Software | ProCAD, ProCAM & FrameWare |
| Punch Operations | 125mm Service Hole, 30mm Service Hole, Rounded Hole, Countersunk Hole |
| Material Cut-Off | Pre-Cut |
| Annual License Fees | No |
| Compatible with other Design Software Vertex / StrucSoft / Tekla , Etc. | Yes |

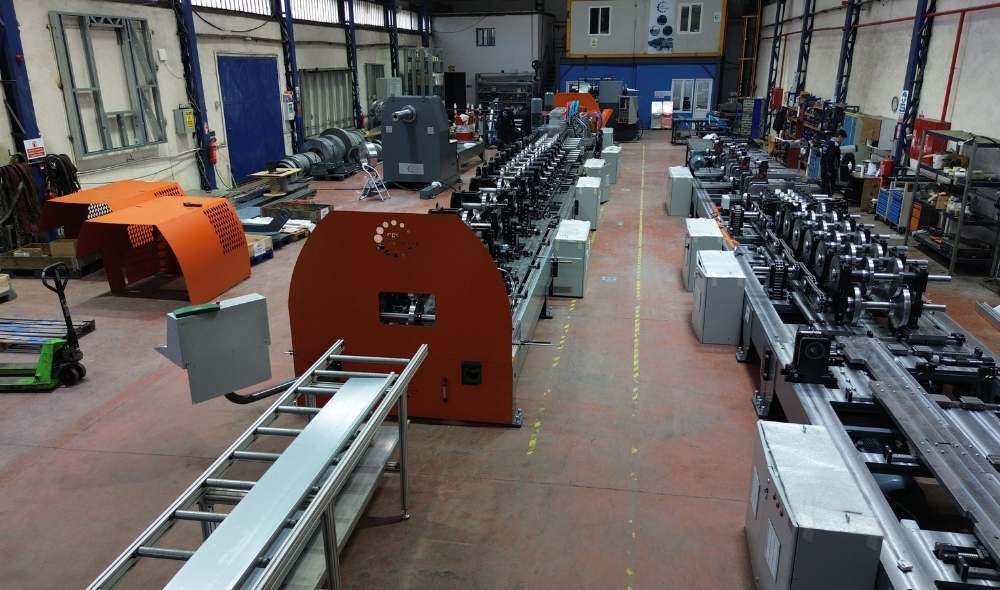

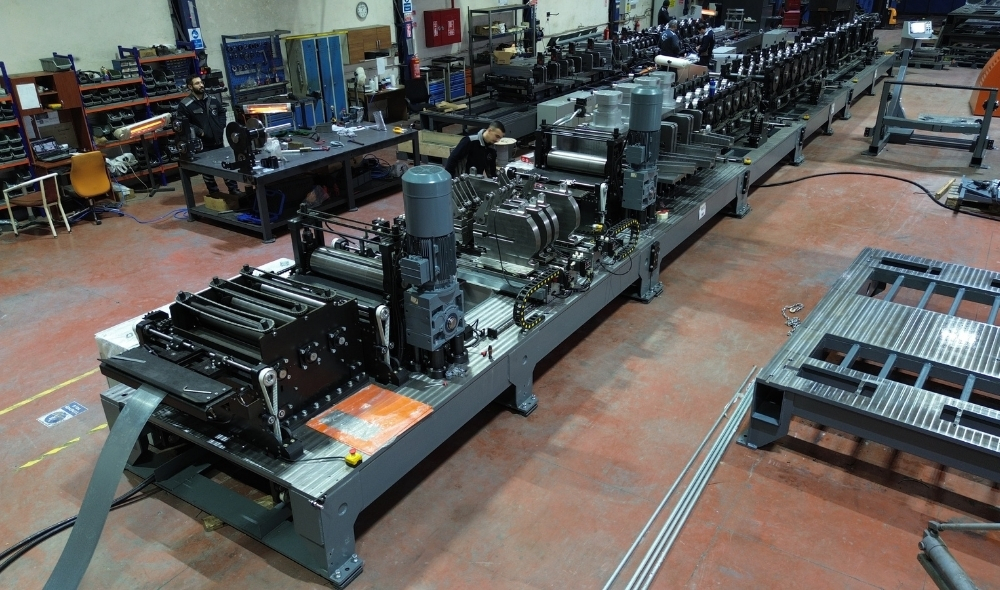

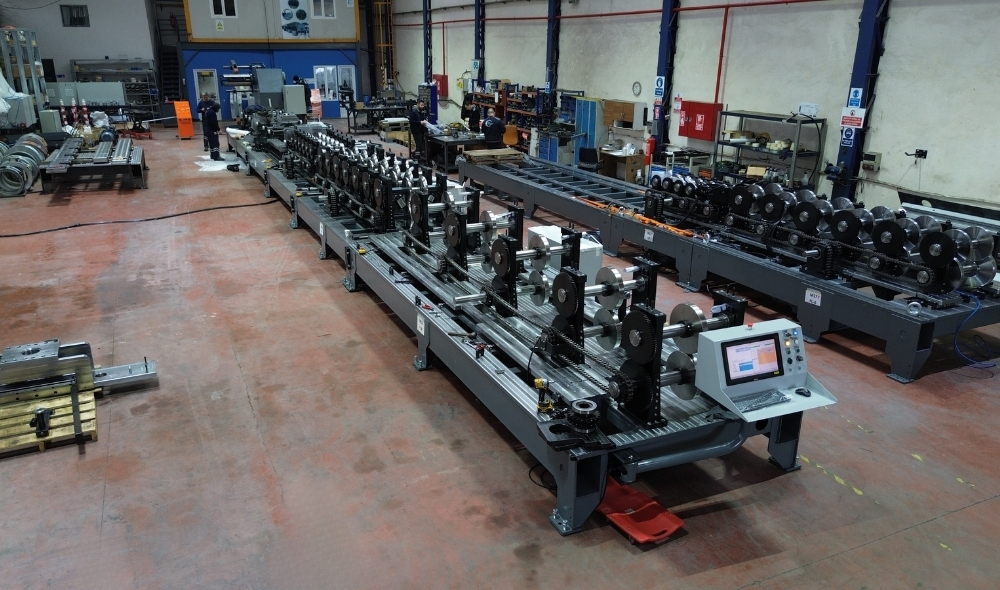

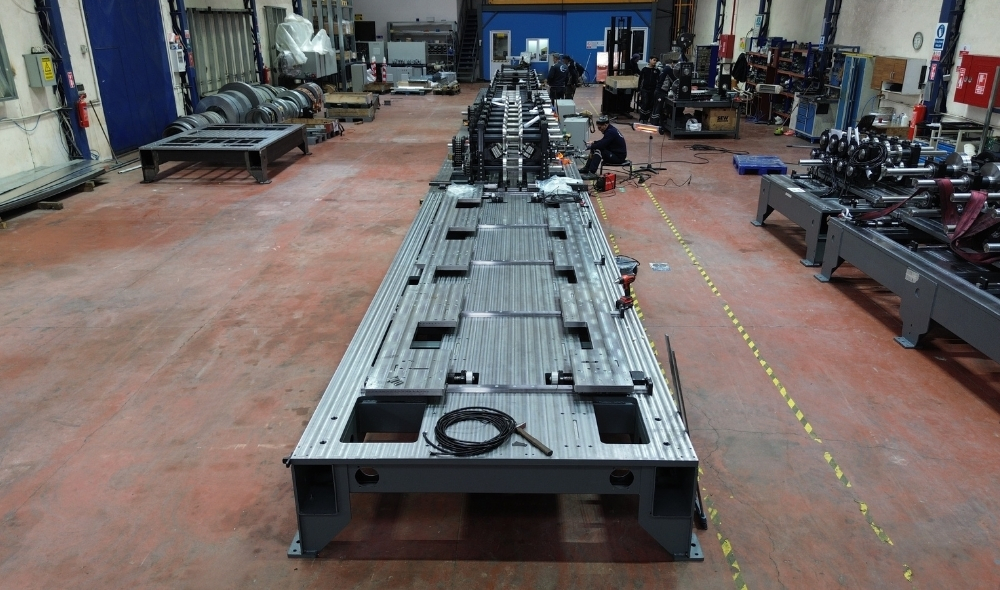

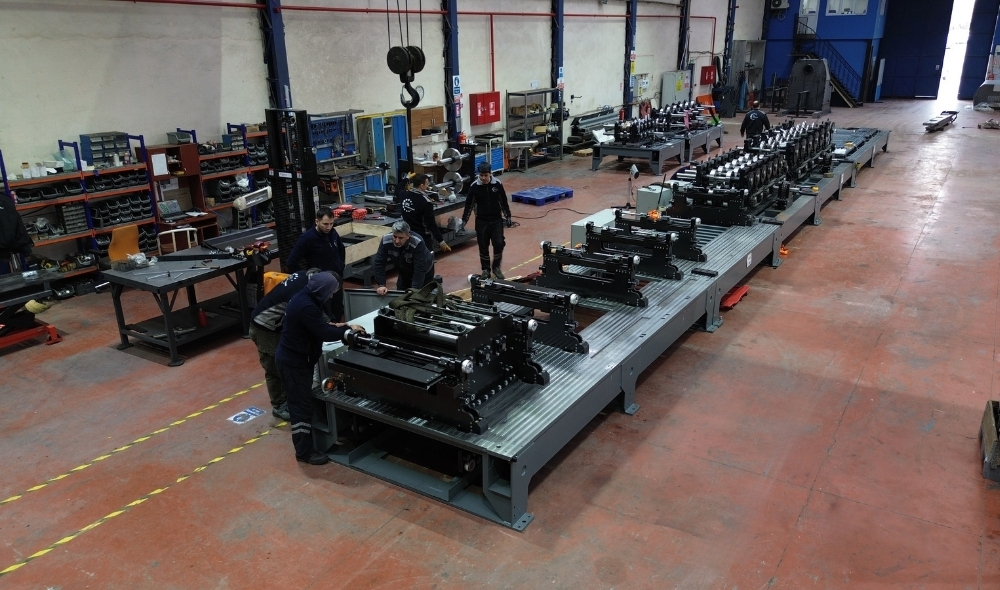

Gallery
